Corrugated Box Machine

• Automatic
• No

• Box size
• Suitable for large corrugated sheets, up to 65 width

• Capacity
• Varies by model, typically 2-3 tons/day

• Color
• Blue/As per order

• Computerized
• No

• Dimension (L*W*H)
• Approx. 2500 mm x 750 mm x 1400 mm

• Drive Type
• Other, Manual hand-operated

• Feature
• Other, Sturdy construction, corrosion resistance

• Function
• Adhesive pasting on corrugated boards

• General Use
• Pasting corrugated sheets in box manufacturing

• Material
• Other, Mild Steel

• Power
• Not required (manual)

• Product Type
• Manual Corrugated Sheet Pasting Machine

• Type
• Other, Manual

• Weight (kg)
• Approx. 450-700 kg

• Automatic
• Other, Semi-Automatic

• Box size
• Customizable according to requirement

• Capacity
• 3-10 Ton/day

• Color
• Standard White & Blue

• Computerized
• No

• Dimension (L*W*H)
• 4200 mm x 1900 mm x 1400 mm

• Drive Type
• Other, Mechanical Belt Drive

• Feature
• Other, High speed, Robust structure, Easy operation

• Function
• Corrugated Flute Formation

• General Use
• Corrugated Board Production

• Material
• Other, Mild Steel

• Power
• 7.5 kW - 15 kW (Depending on model)

• Product Type
• Oblique Type Single Face Paper Corrugating Machine

• Type
• Other, Semi-Automatic

• Voltage
• 380V/415V

• Weight (kg)
• Approx. 4000-6000 kg

• Automatic
• Other, Semi-Automatic

• Box size
• Customizable as per sheet feed

• Capacity
• 3-5 Tons per day

• Color
• Blue & Silver

• Computerized
• No

• Dimension (L*W*H)
• 3500 x 1800 x 1500 mm

• Drive Type
• Electric

• Feature
• Other, Heavy Duty, Durable, High Efficiency

• Function
• Corrugated Sheet Production

• General Use
• Corrugated Box Manufacturing

• Material
• Other, Mild Steel

• Power
• 5-7.5 HP

• Product Type

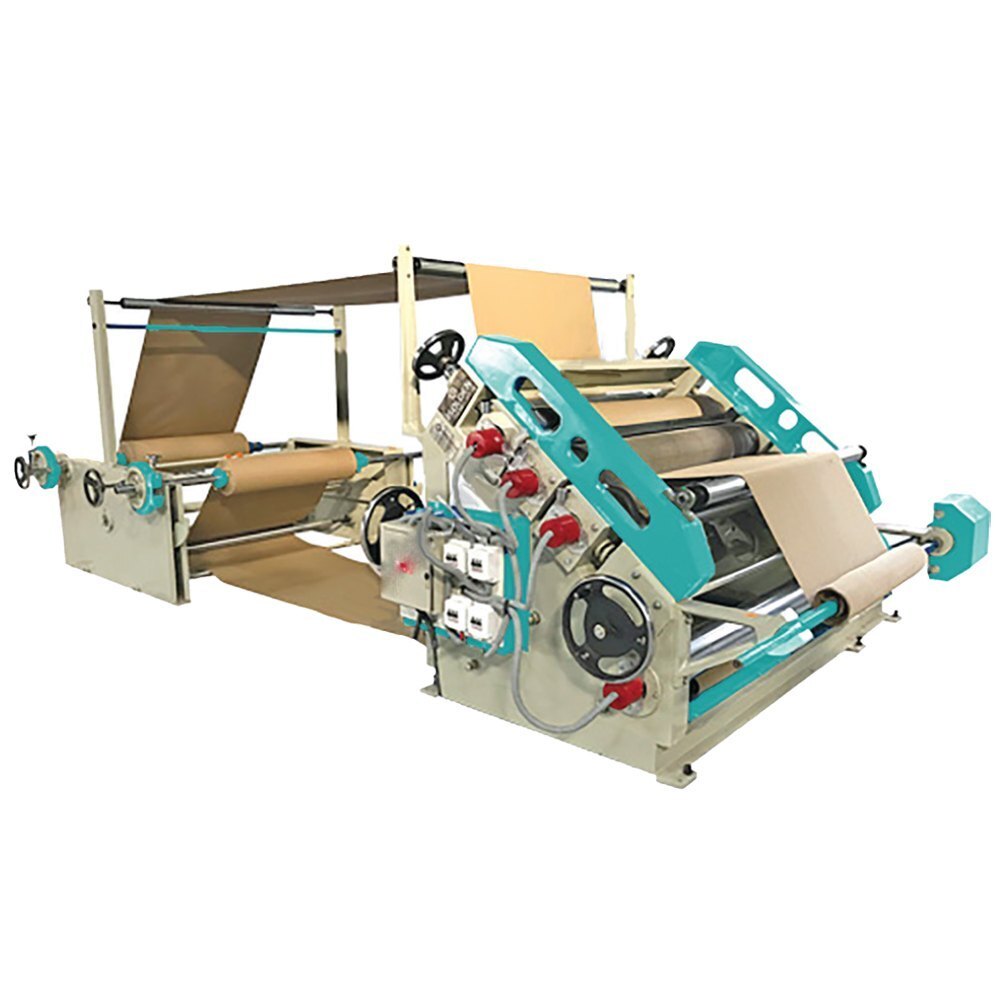

• Single Face Oblique Type Corrugation Machine

• Type
• Other, Oblique Type

• Voltage
• 220-440 V

• Weight (kg)
• 3000-3500 kg

• Automatic
• Other, Yes/No (available in both variants)

• Box size
• Custom/Variable as per machine configuration

• Capacity
• 1500 - 2000 kg/hr (varies with model)

• Color
• Orange & Silver (as shown in the image)

• Computerized
• No

• Dimension (L*W*H)
• 3800 mm x 1900 mm x 1600 mm (may vary depending on model)

• Drive Type
• Other, Electric motor

• Feature
• Other, Heavy-duty construction, Precision rollers, Quick heating system, Sturdy structure

• Function
• Corrugates and glues liner and medium paper to produce single face board

• General Use
• Used for manufacturing single face corrugated board

• Material
• Other, Mild Steel, Cast Iron

• Power
• 8 - 15 HP

• Product Type
• Single Face Paper Corrugation Machine

• Type
• Other, Semi-automatic/Automatic

• Voltage
• 220/380/415V, 50/60Hz

• Weight (kg)
• 3500 kg - 5000 kg (approximate)

• Automatic
• Other, Optional (Manual/Automatic available)

• Box size
• Customizable as per requirement

• Capacity
• 3-5 Ton/day

• Color
• Blue and Silver

• Computerized
• No

• Dimension (L*W*H)
• Approx. 2800 x 1500 x 1700 mm

• Drive Type
• Other, Gear Driven

• Feature
• Other, High efficiency, robust frame, easy operation, low maintenance

• Function
• Corrugation of kraft paper for single face/broad corrugated sheets

• General Use
• Making corrugated cardboard sheets

• Material
• Other, Mild Steel (MS)

• Power
• 7.5 HP to 10 HP

• Product Type
• Vertical Type Corrugation Machine

• Type
• Other, Automatic / Semi-Automatic

• Voltage
• 380V/415V, 3 Phase

• Weight (kg)
• Approx. 2500-3500 kg

• Automatic
• Other, Optional (Available in Manual and Semi-automatic)

• Box size
• Customizable as per requirement

• Capacity
• 3-5 tons/day (approx)

• Color
• Blue & Yellow (customized available)

• Computerized
• No

• Dimension (L*W*H)
• 2200 x 1100 x 1300 mm (approx)

• Drive Type
• Other, Electric Motor Drive

• Feature
• Other, Sturdy construction, Easy installation, Hassle-free operation, Heavy-duty rollers

• Function
• Corrugation, Fluting

• General Use
• Making corrugated board/fluting paper for packaging industry

• Material
• Other, Cast Iron, Mild Steel

• Power
• 3-7.5 HP

• Product Type
• Vertical Type Corrugation Machine

• Type
• Other, Automatic/Manual

• Voltage
• 220V/380V/415V

• Weight (kg)
• 1200-1800 kg (approx)

• Automatic
• Other, Semi-Automatic or Manual Option

• Box size
• Max 1600 x 1200 mm (custom sizes available)

• Capacity
• Up to 2000 kg (customizable as per requirement)

• Color
• Grey and Black (custom colors available)

• Computerized
• No

• Dimension (L*W*H)
• 2200 mm x 1600 mm x 2100 mm

• Drive Type
• Other, Electric Motor Driven

• Feature
• Other, Heavy Duty, High Efficiency, Low Maintenance, Robust Construction

• Function
• Pressing, flattening and compressing stacked cartons

• General Use
• Pressing and stacking of corrugated cardboard cartons and paperboards

• Material
• Other, Mild Steel & Heavy Duty Steel Structure

• Power
• 2.2 kW (as per model and requirement)

• Product Type
• Corrugated Cardboard Carton Pressing Machine

• Type
• Other, Hydraulic or Motor-driven Pressing Machine

• Voltage
• 220V/380V/415V (customized as per installation)

• Weight (kg)
• Approx. 1200 kg
